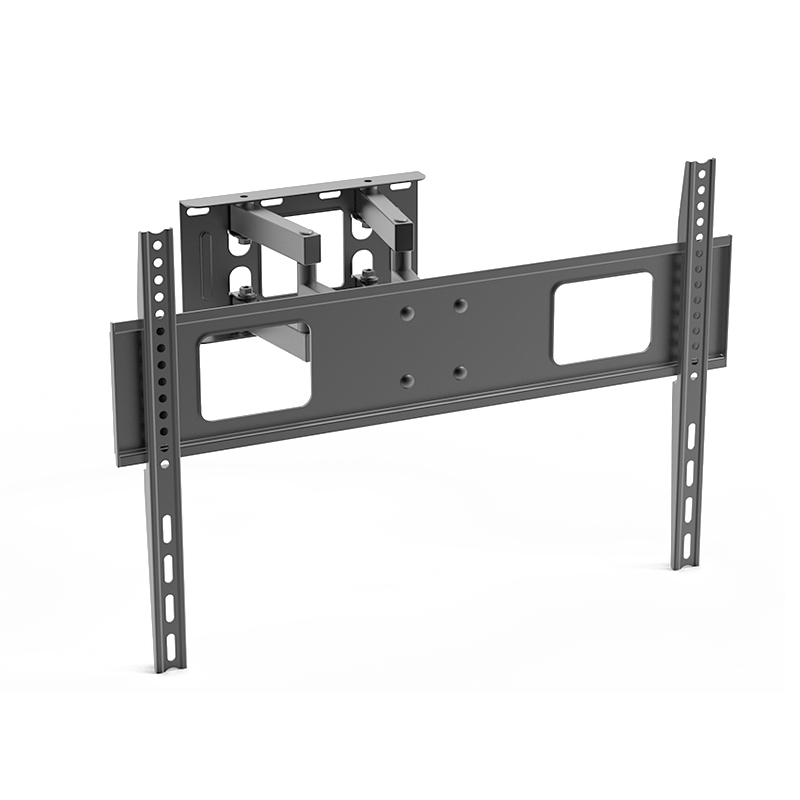

FM10-466
Category: Full-motion TV Wall Mount
Brief Specifications: for most 37″ to 80″ TVs, 50kg weight capacity, Max VESA 600×400
Color: Black only
Specifications:
| Product Category | Full-motion TV Wall Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Fit Screen Size: | 37″-80″ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | Universal |
| Weight Capacity: | 50kg |
| VESA Compatible: | 600×400, 400X400, 400X200, 300X300, 300X200, 200X200 |
| Max. Mounting Hole: | 600×400 |
| Strength Tested: | 3 Times Approved |

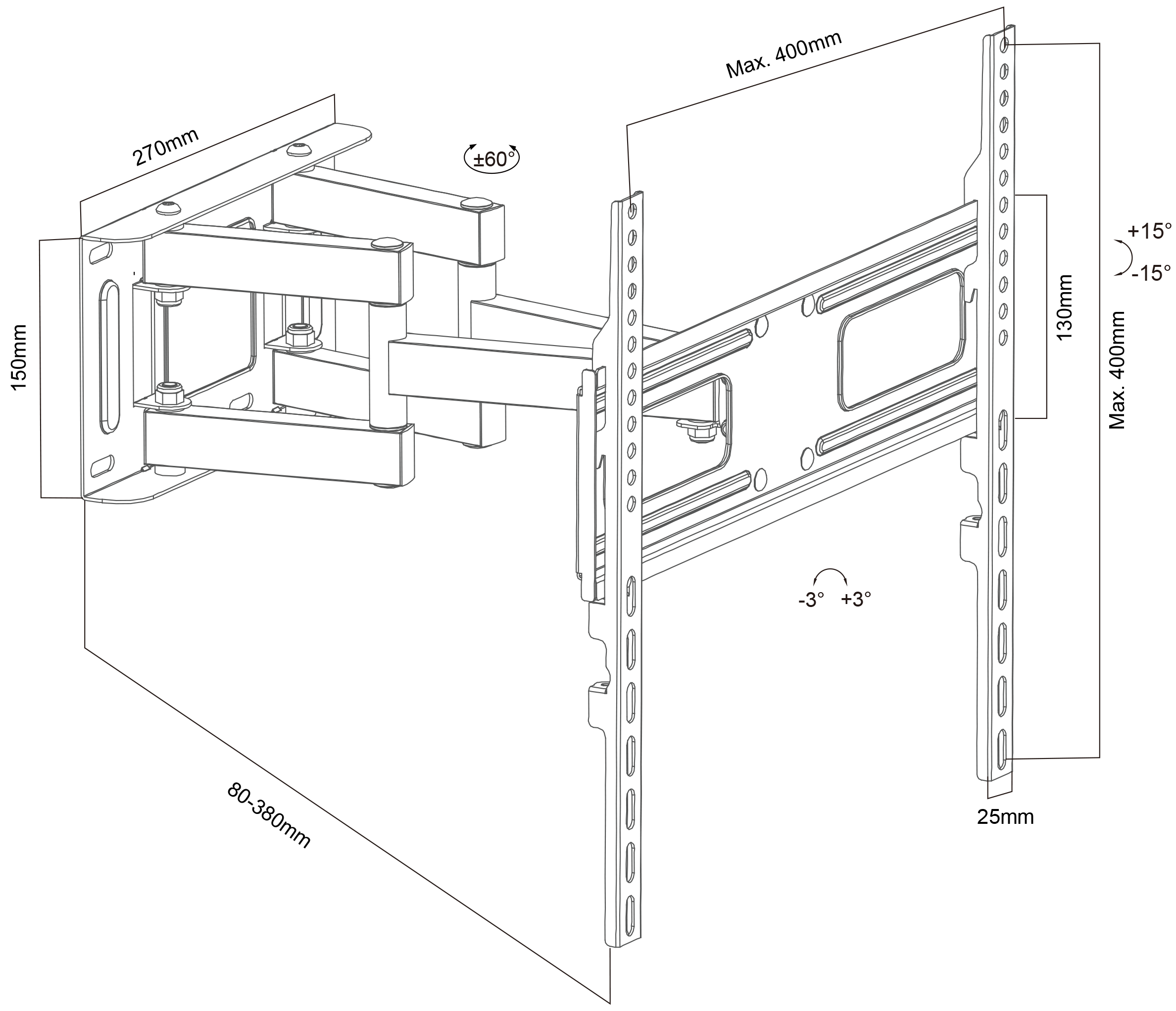

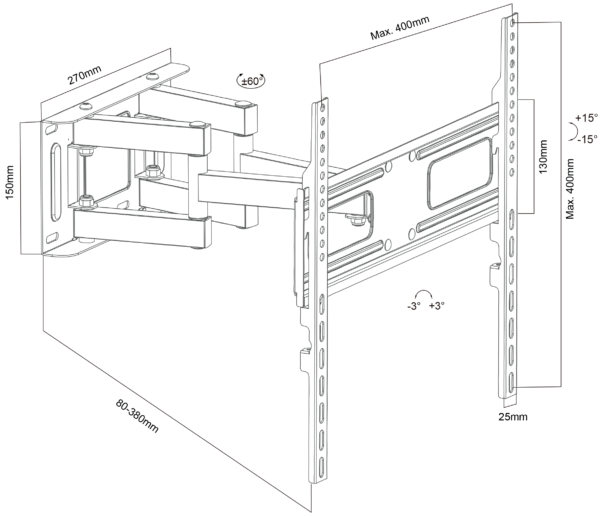

| Profile: | 80-380mm (3.15-14.96″) |
| Tilt Range: | +5°~-15° |
| Swivel Range: | +60°~-60° |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | Yes |
| Installation: | Solid wall, stud |
| Panel Type: | Detachable Panel |
| Accessory Kit Package: | Compartment Polybag |
Resources:
Manual-FM10-466
