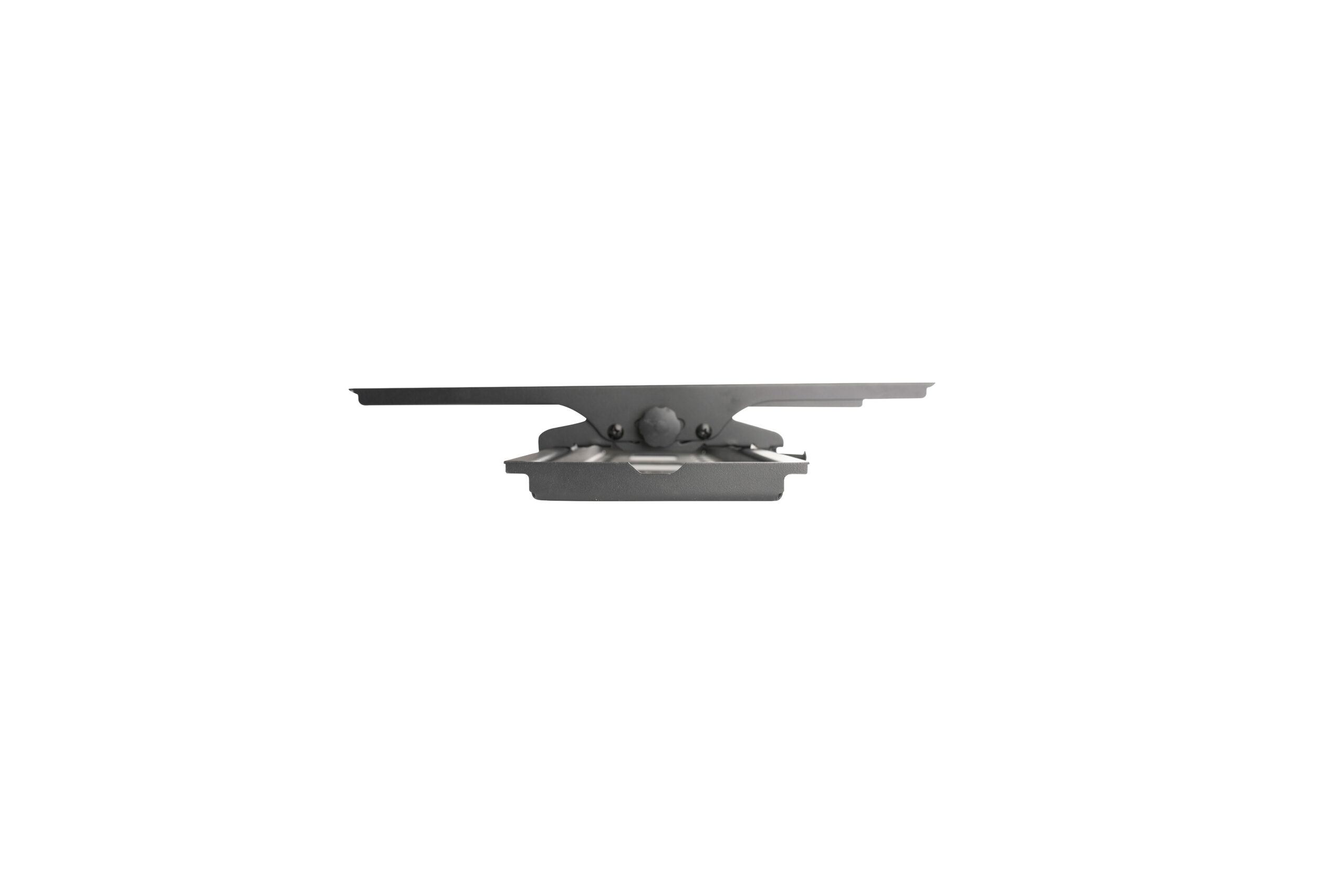

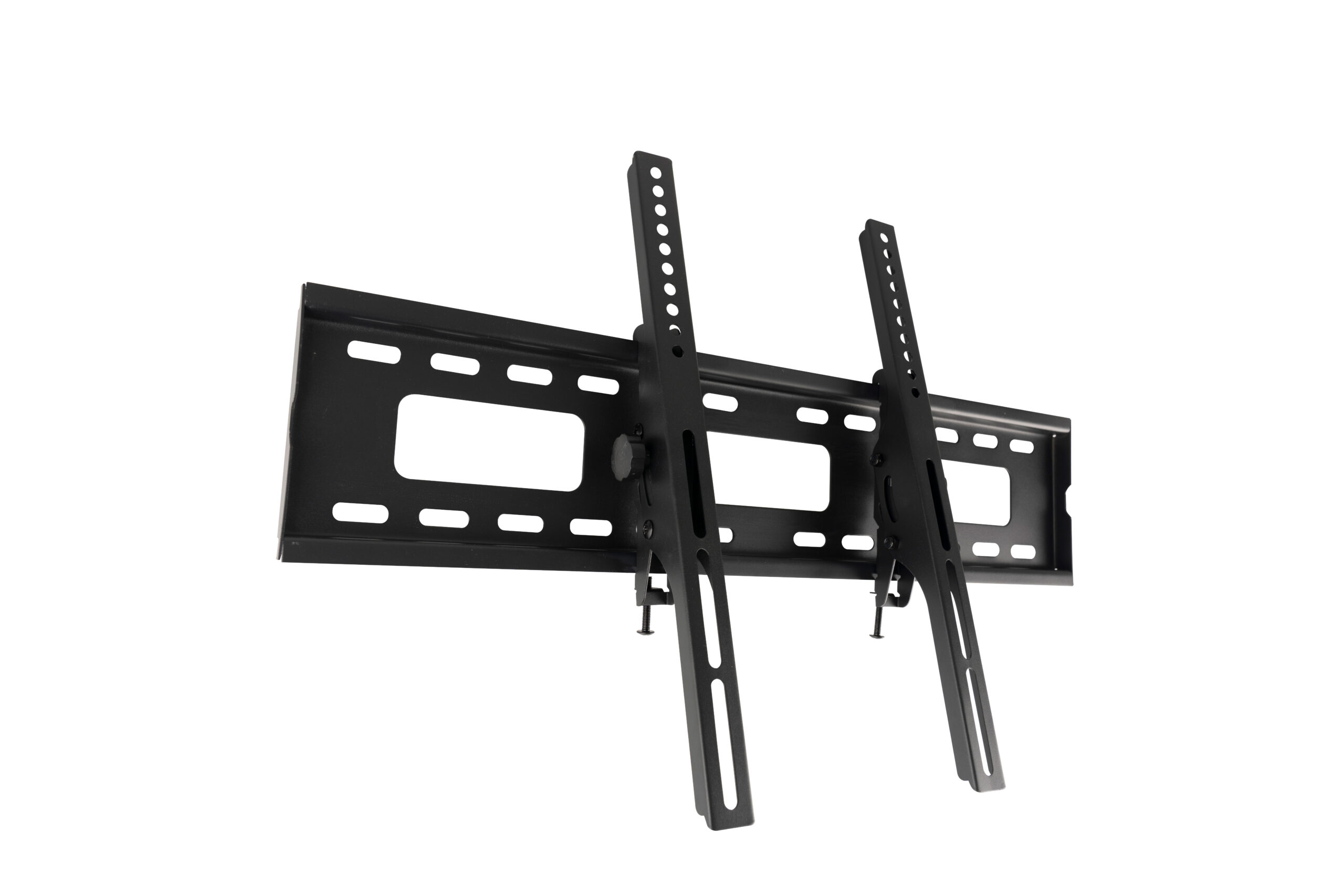

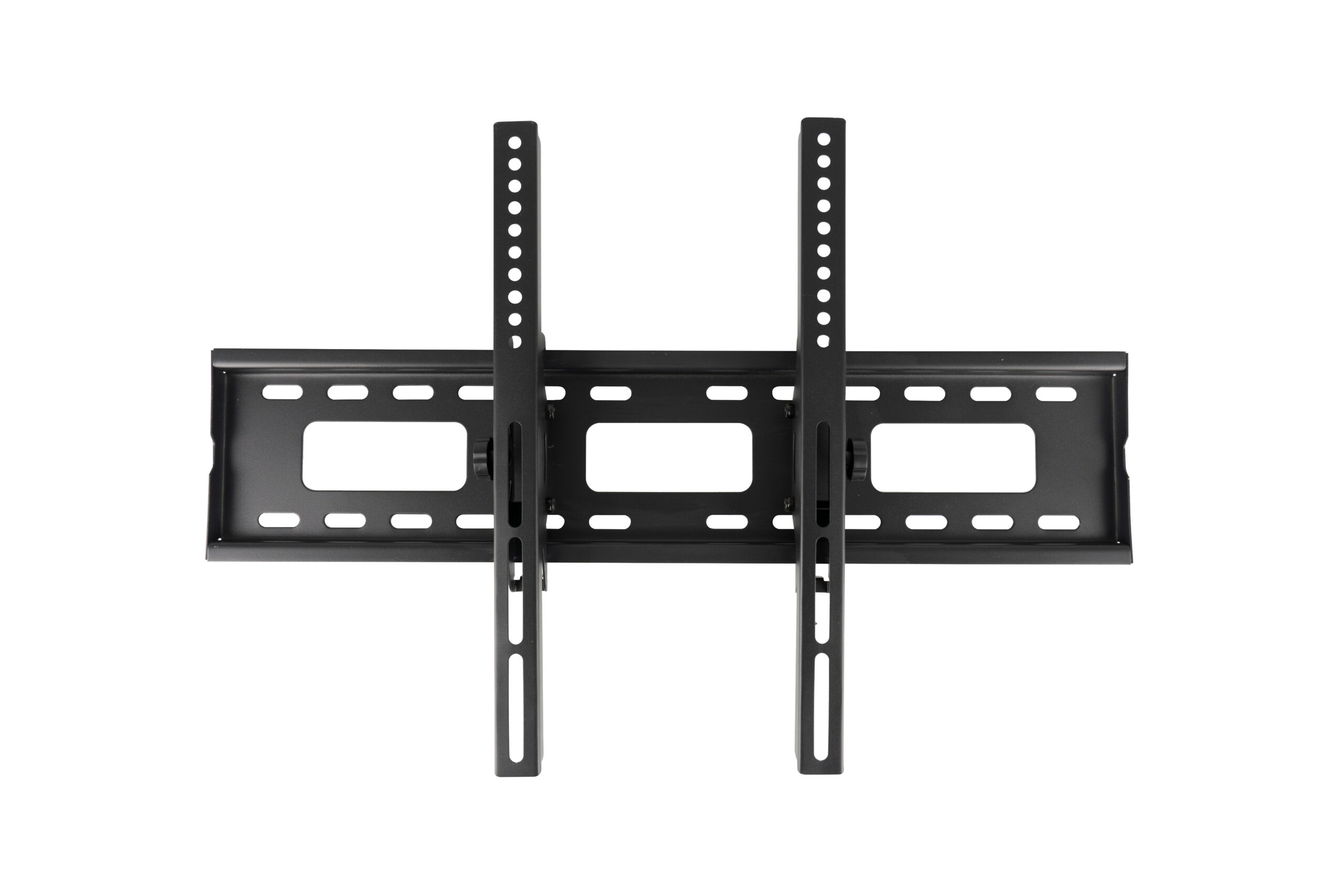

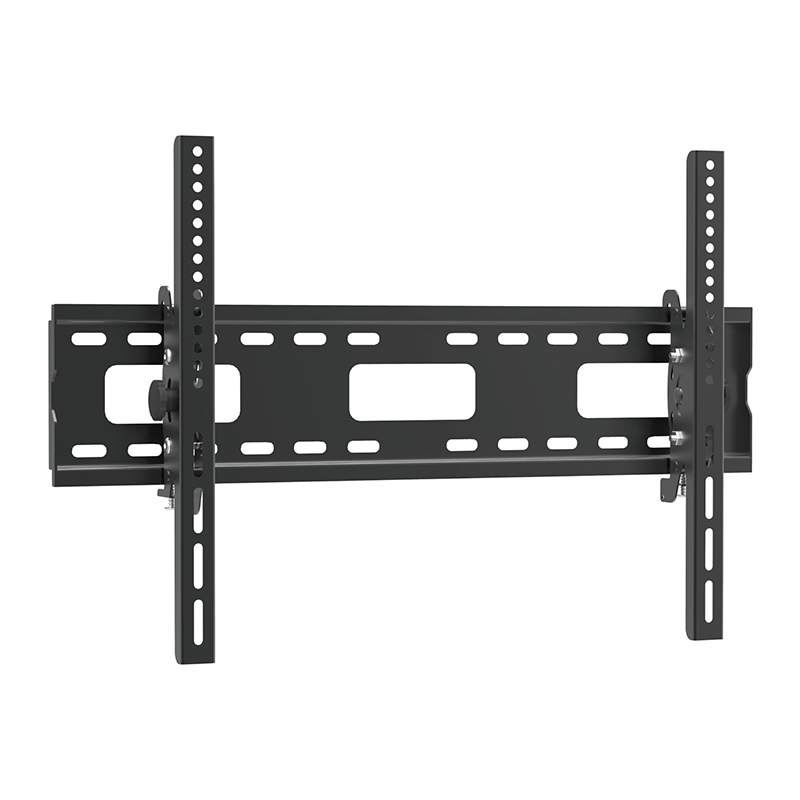

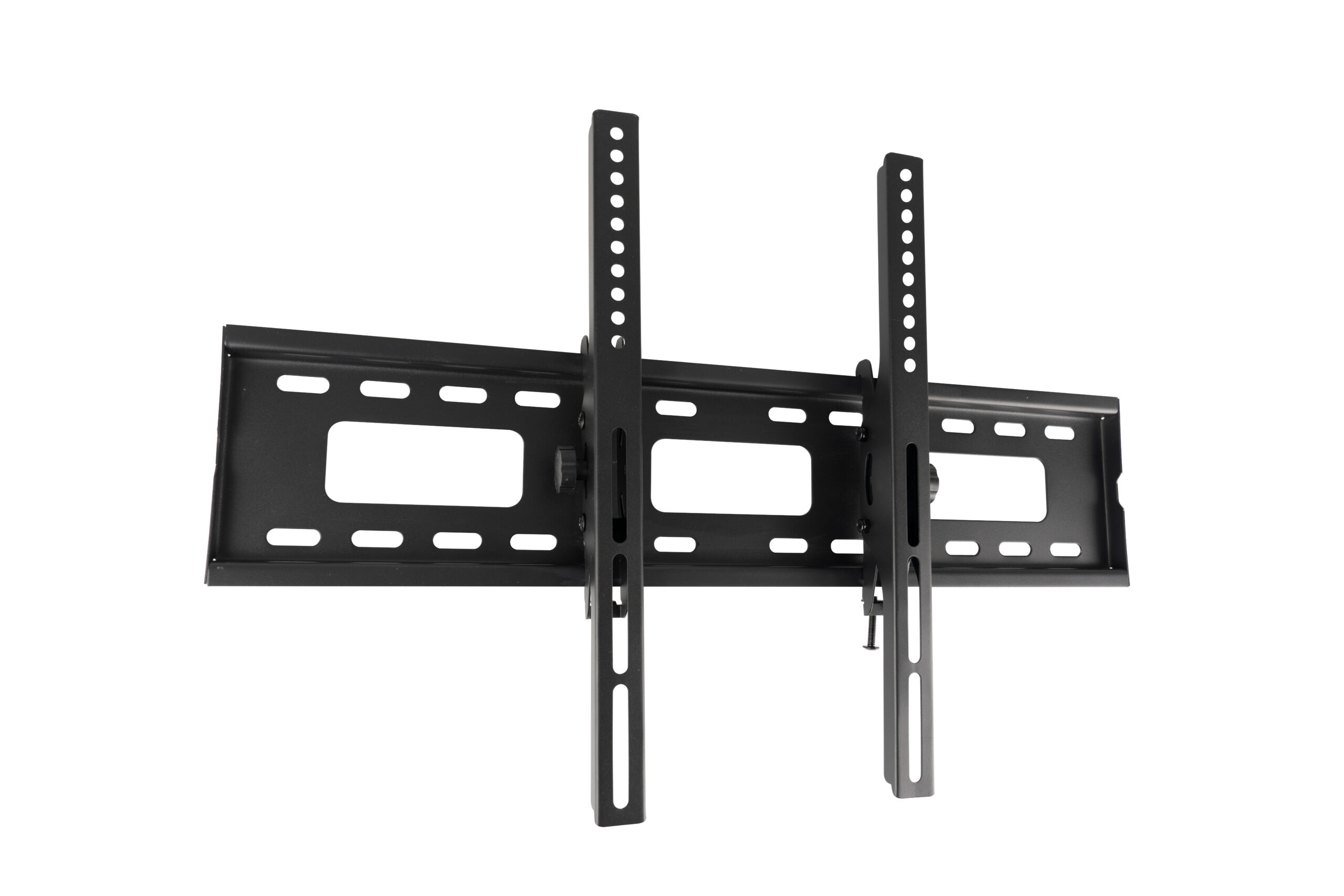

PM03-46T
Category: Tilt TV Wall Mount
Brief Specifications: for most 37″ to 80″ TVs, 80kg weight capacity, Max VESA 600×400
Color: Black only
Specifications:
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Fit Screen Size: | 37″-80″ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | Universal |
| Weight Capacity: | 80kg |
| VESA Compatible: | 600X400,400×400, 400×200, 200×200 |
| Max. Mounting Hole: | 600×400 |
| Strength Tested: | 3 Times Approved |
| Profile: | 68mm (2.68″) |
| Tilt Range: | +15°~-15° |
| Swivel Range: | N/A |
| Screen Level: | N/A |
| Screen Freely Tilting: | N/A |
| Bubble Level: | Included |
| Panel Type: | Detachable Panel |
| Accessory Kit Package: | Compartment Polybag |
Resources:
Manual-PM03-46T
