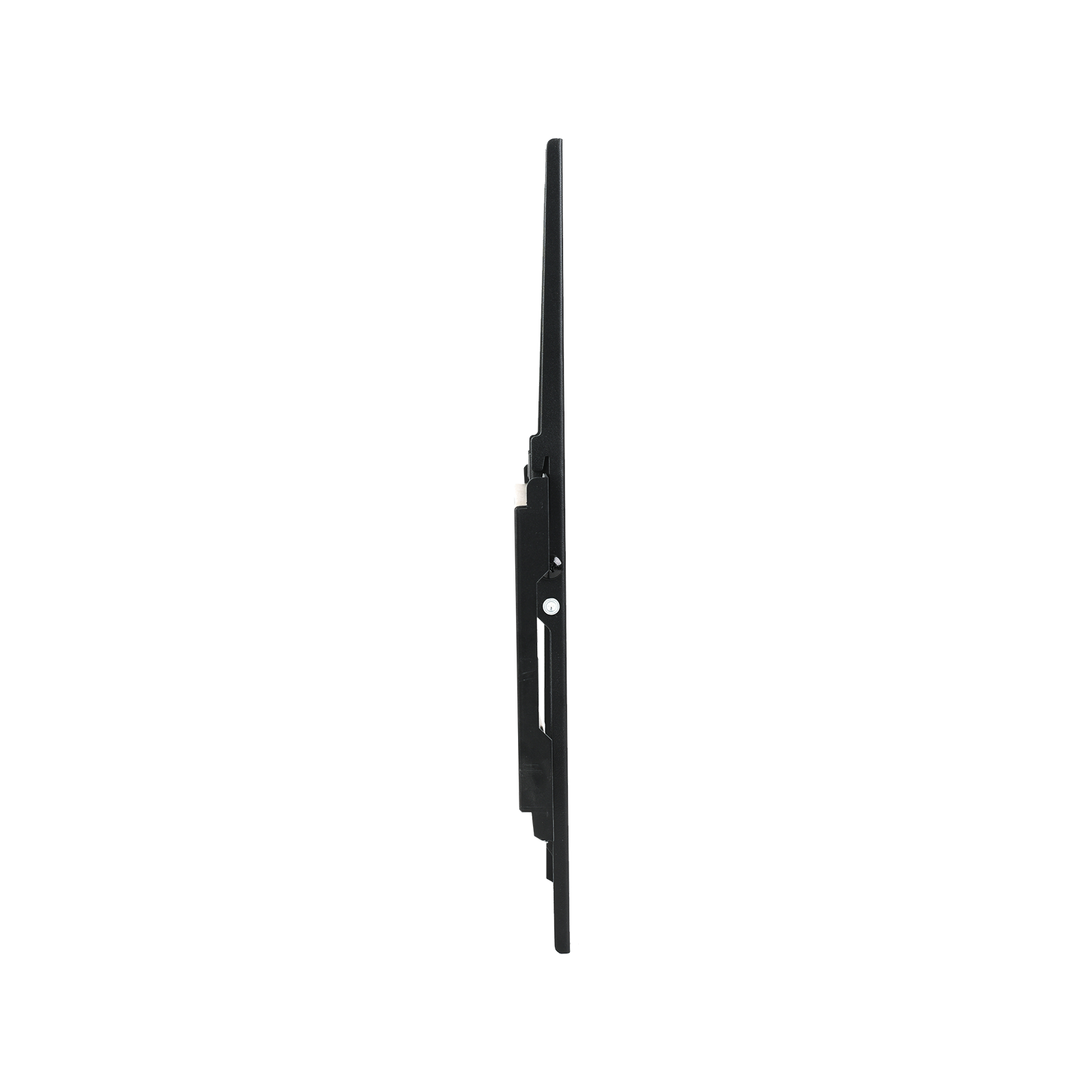

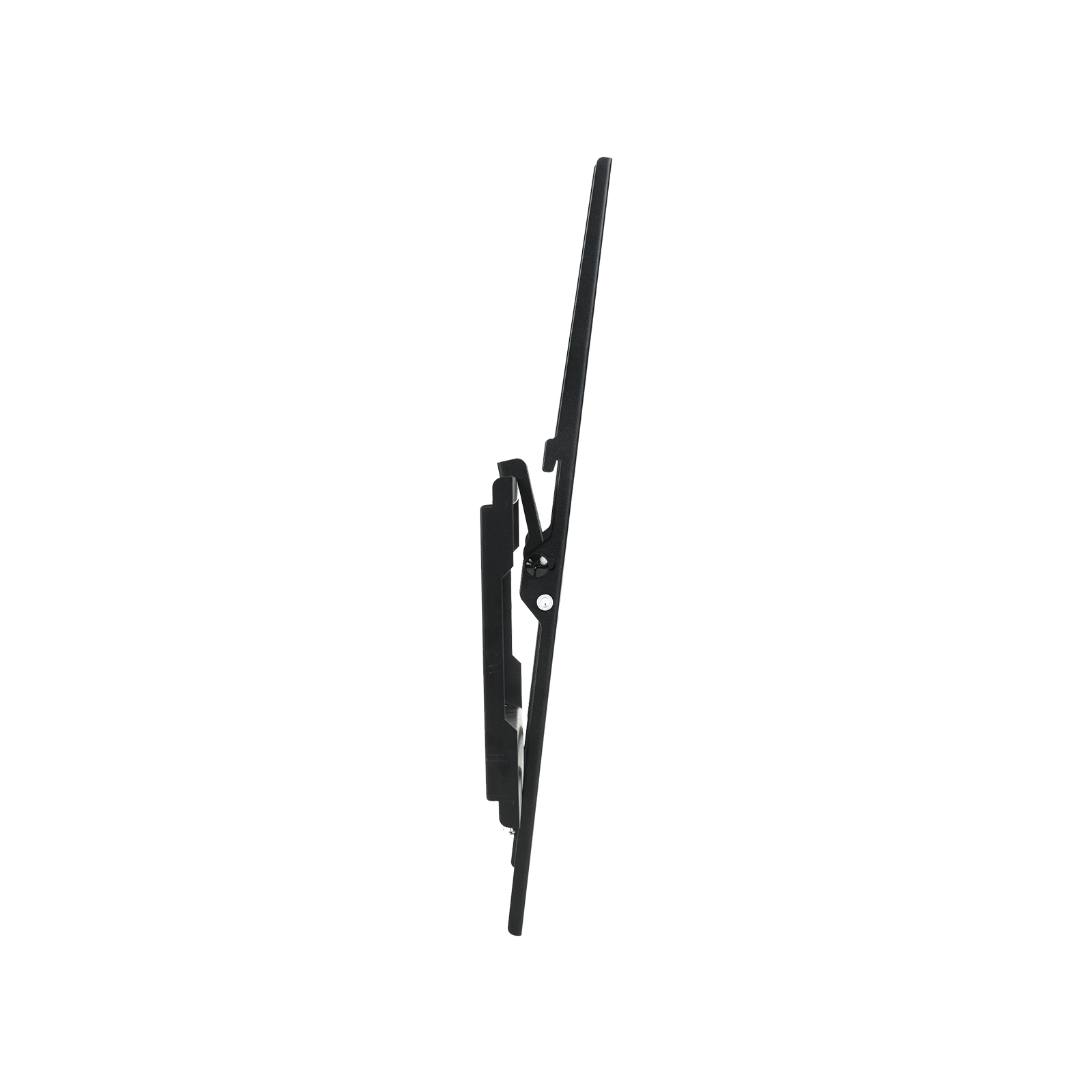

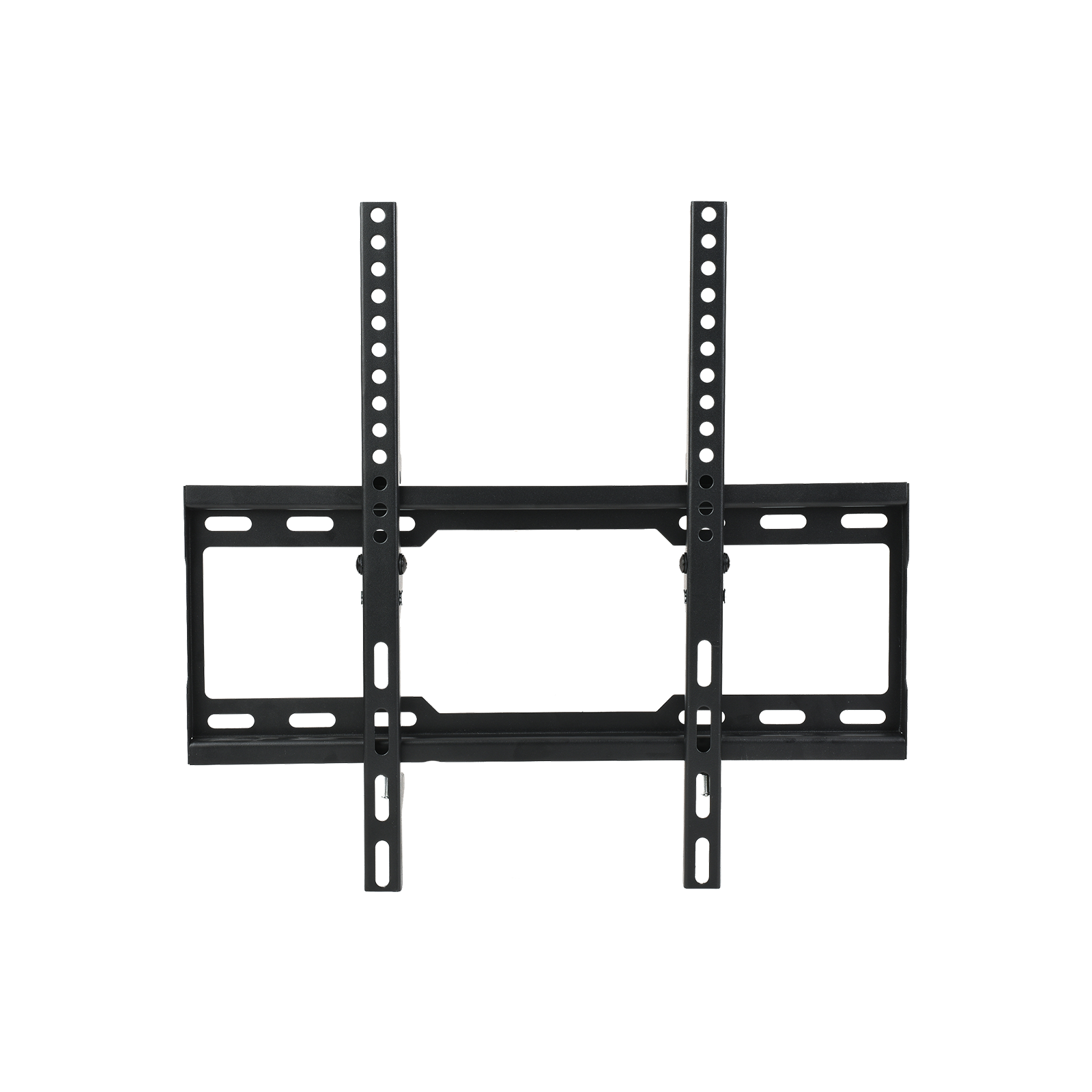

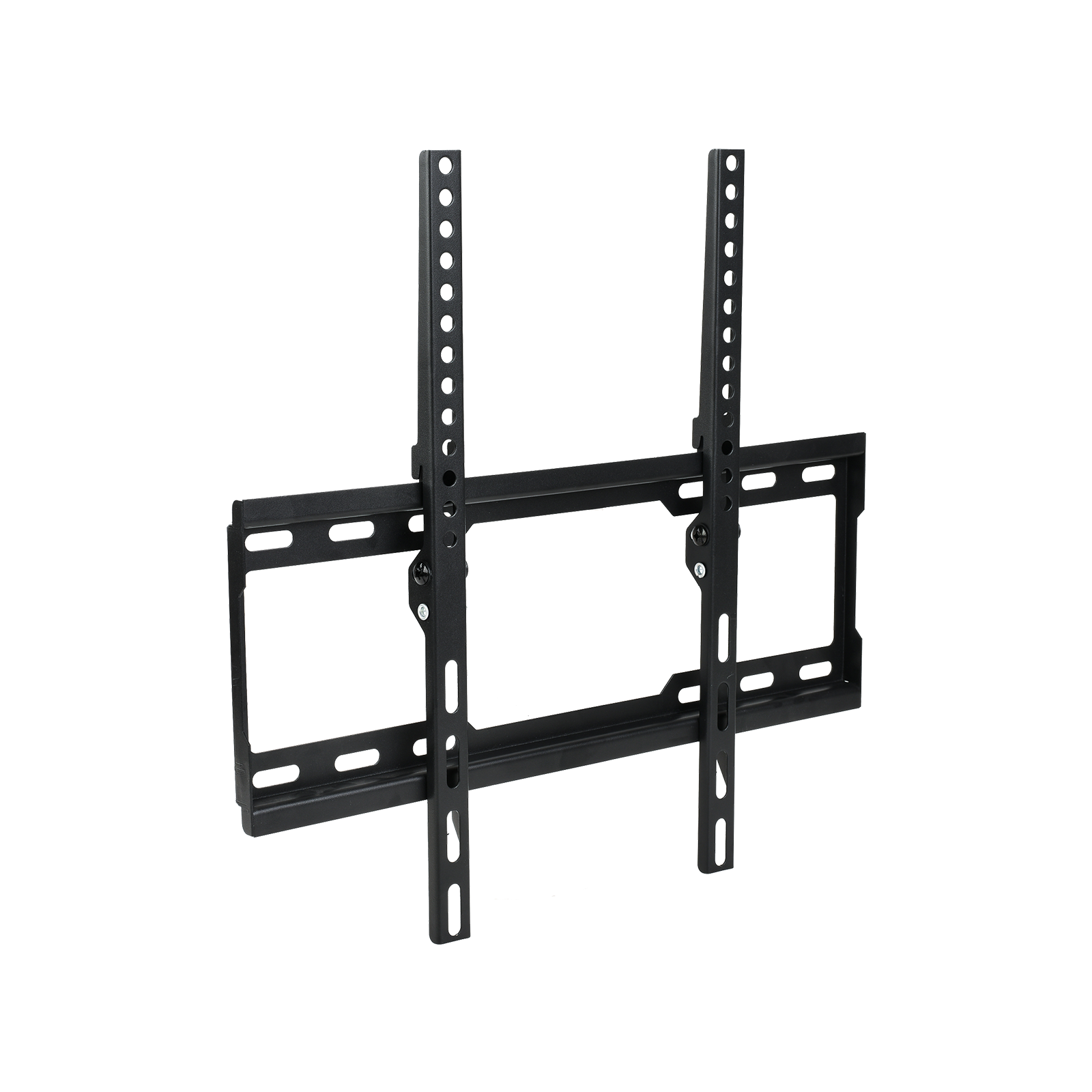

PM12-44T
Category: Tilt TV Wall Mount
Brief Specifications: for most 323″ to 75″ TVs, 45kg weight capacity, Max VESA 400×400
Color: Black only
Specifications:
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Fit Screen Size: | 32″-75″ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | Universal |
| Weight Capacity: | 45kg |
| VESA Compatible: | 400×400, 400×200, 200×400, 200×200, 200×100, 100×200, 100×100, 75×75, 50×50 |
| Max. Mounting Hole: | 400×400 |
| Strength Tested: | 3 Times Approved |
| Profile: | 22mm(0.87″) |
| Tilt Range: | +0°~-8° |
| Swivel Range: | N/A |
| Screen Level: | N/A |
| Screen Freely Tilting: | Yes |
| Installation: | Solid wall, stud |
| Panel Type: | Detachable Panel |
| Accessory Kit Package: | Compartment Polybag |
Resources:
Manual-PM12-44T
